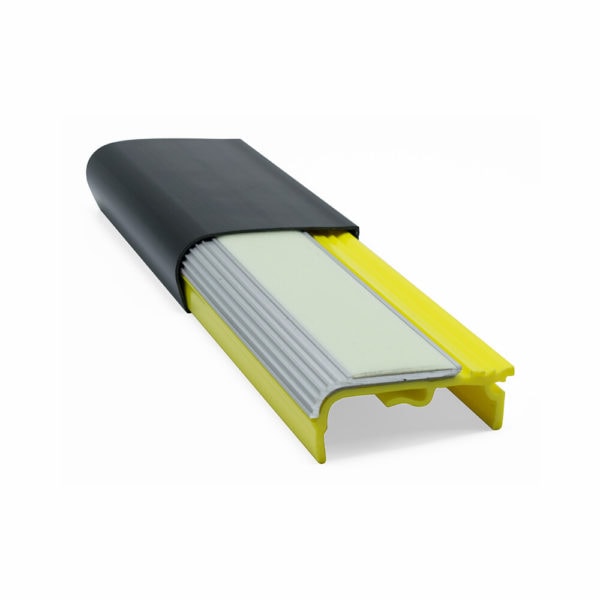

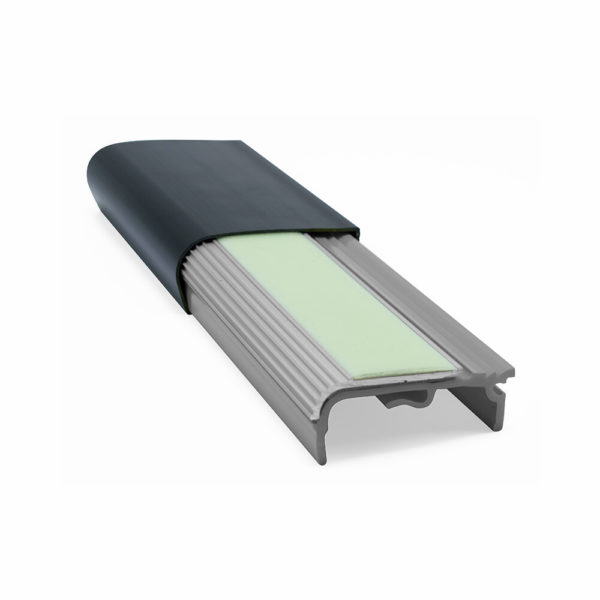

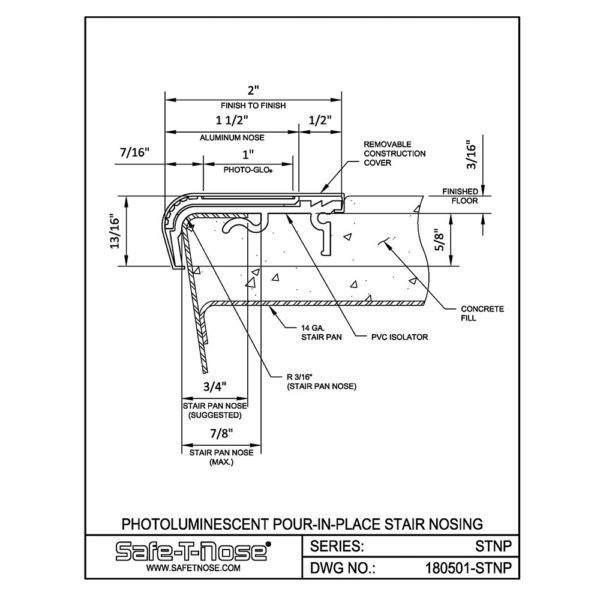

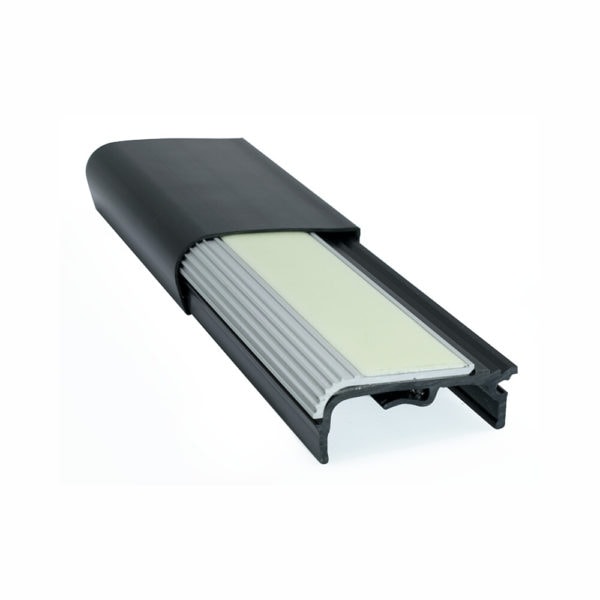

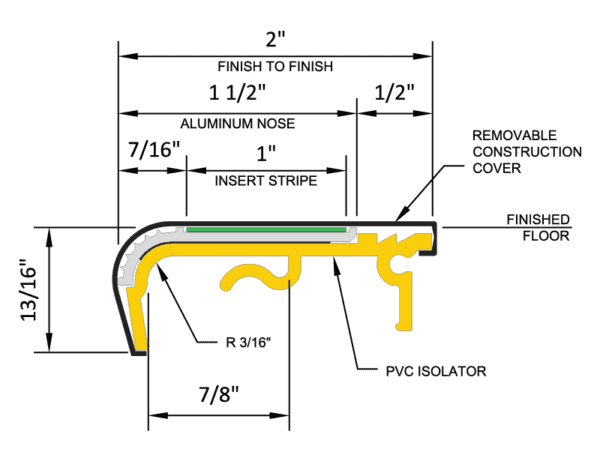

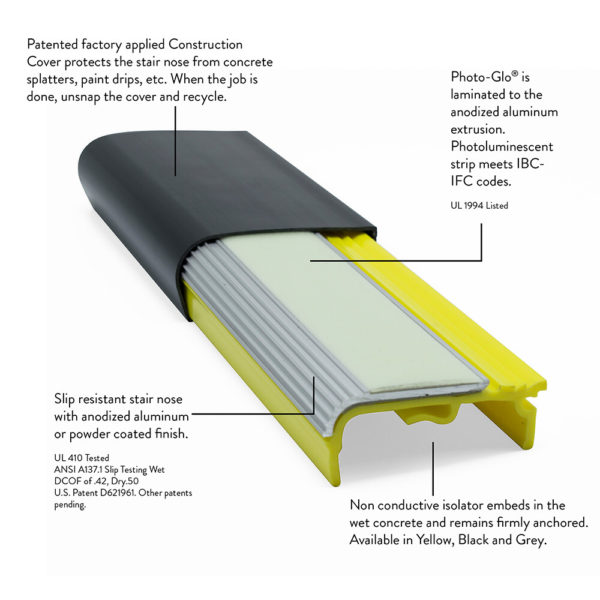

Four-piece design; 2” non-conductive pvc isolator, replaceable anodized nosing, replaceable 1” Photo-Glo® strip and patented Construction Cover.

Isolator clips on to the steel stair pan to hold the nosing in place as concrete is poured.

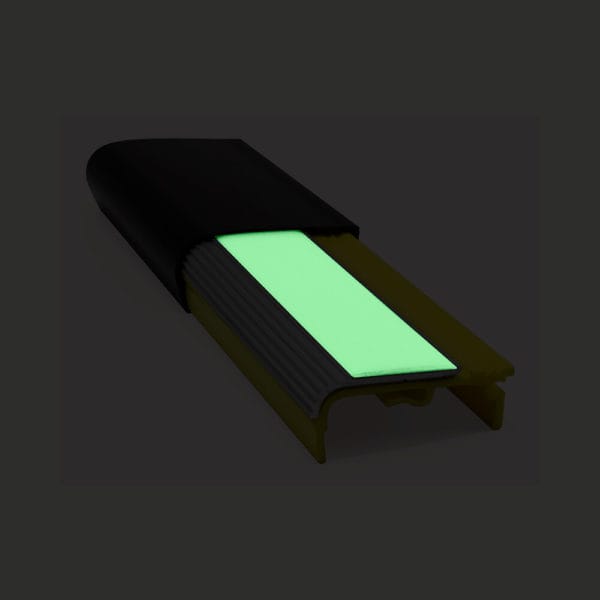

Photo-Glo® – utilizes the same industrial grade solid polymer used in golf balls, imbedding photoluminescent pigment, the glow-in-the-dark material. This creates a durable material that is approximately 50% brighter than the code requires. Photo-Glo® comes with an industry leading 25-year warranty.

Clear

OPTIONS

  • Black, Grey, or Yellow Isolator color
  • Black or Yellow powder coated aluminum
  • Black or Yellow traction strip

Photo-Glo is laminated to the anodized aluminum extrusion and meets IBC/IFC guidelines. UL 410, UL 1994 listed and exceeds ASTM E2072 and 2073 requirements. ANSI A137.1 Slip Testing – Wet. U.S. Patent #D621961, other patents pending.

Product Code: STNPStandard OptionsAlternate Options
Aluminum Nosing ColorClear AnodizedYellow Powder Coat, Black Powder Coat, Custom Powder Coat
PVC Isolator ColorYellow, Black or GreyCustom Colors Available
Insert StripeSTNFBlack Traction – Safety Yellow Traction
Construction CoverCCLSafety Yellow
Attachment HardwareIsolator clips to the steel stair pan and embeds into wet concrete
LengthSold by linear footUp to 12 feet, to the nearest 1/16″

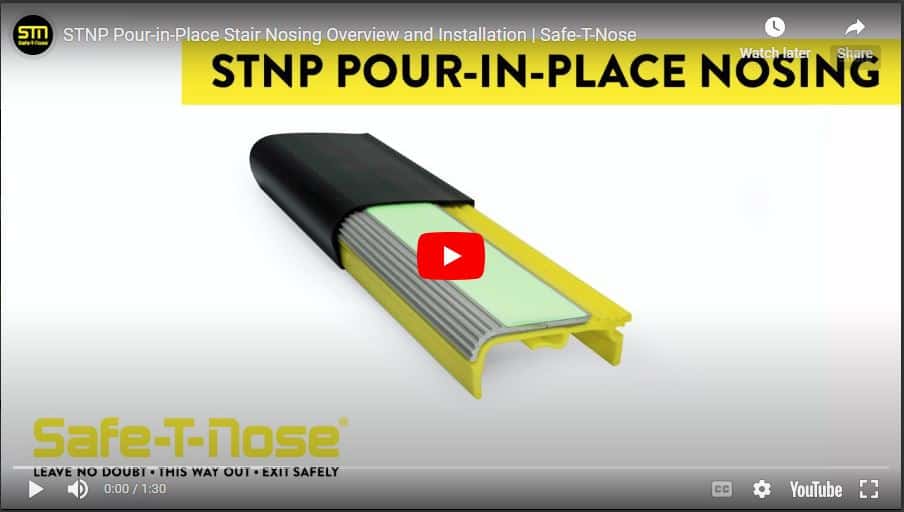

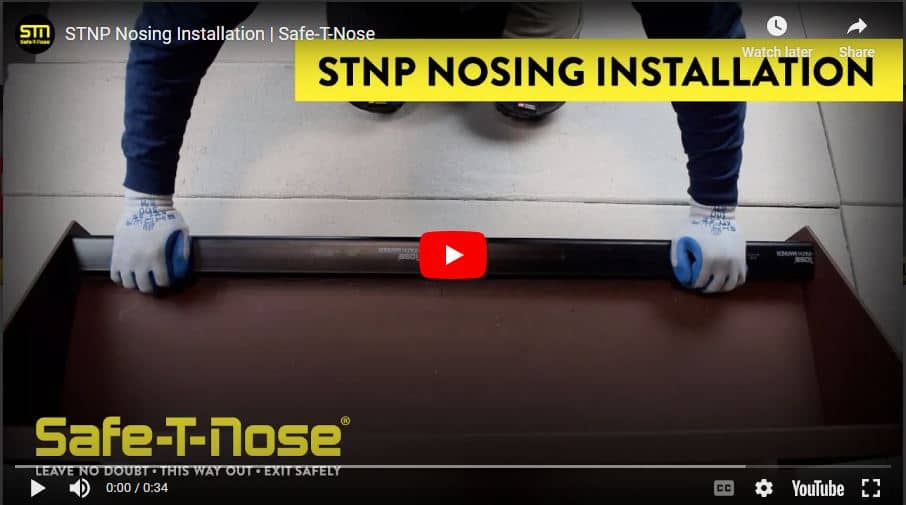

VIDEO


INTERNATIONAL BUILDING CODE

The Safe-T-Nose Obstruction Markings meets the following Building, Fire & Life Safety Codes:

  • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
  • 2015 & 2018 — Section 1025
  • 2009 — NFPA 101 and 170
  • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
  • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
  • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings
Isolator Color

Black, Grey, Yellow

Nosing Color

Clear Anodized Aluminum, Black Powder-Coated Aluminum, Yellow Powder-Coated Aluminum

Insert Style

1” Photo-Glo® Strip (STNF), 1" Black Traction Strip, 1" Yellow Traction Strip
