Photoluminescent Running Man Right Directional Sign

A photoluminescent diagonal arrow sign. 5-inch by 5-inch square. An easy peel and stick application. Activated by natural artificial light.

The Running Man Left or Right Sign is to be placed centered on the exit door, no higher than 18 inches from the floor, to inform the occupant of the exit path through the final exit doorway.

Combine one Running Man Left or Right Sign with one Straight or Diagonal Arrow Sign to create directional signage. With only 4 symbols, you can mark any direction of your egress path. Just place one running man sign with one arrow sign pointing up or down to the exit floor. The arrows can be turned, so that each possible direction can be indicated. The directional signs are to is to be equally placed along the escape routes to direct occupants to the final exit.

Smooth easy cleanable surface.

  • Running Man sign required at final exit

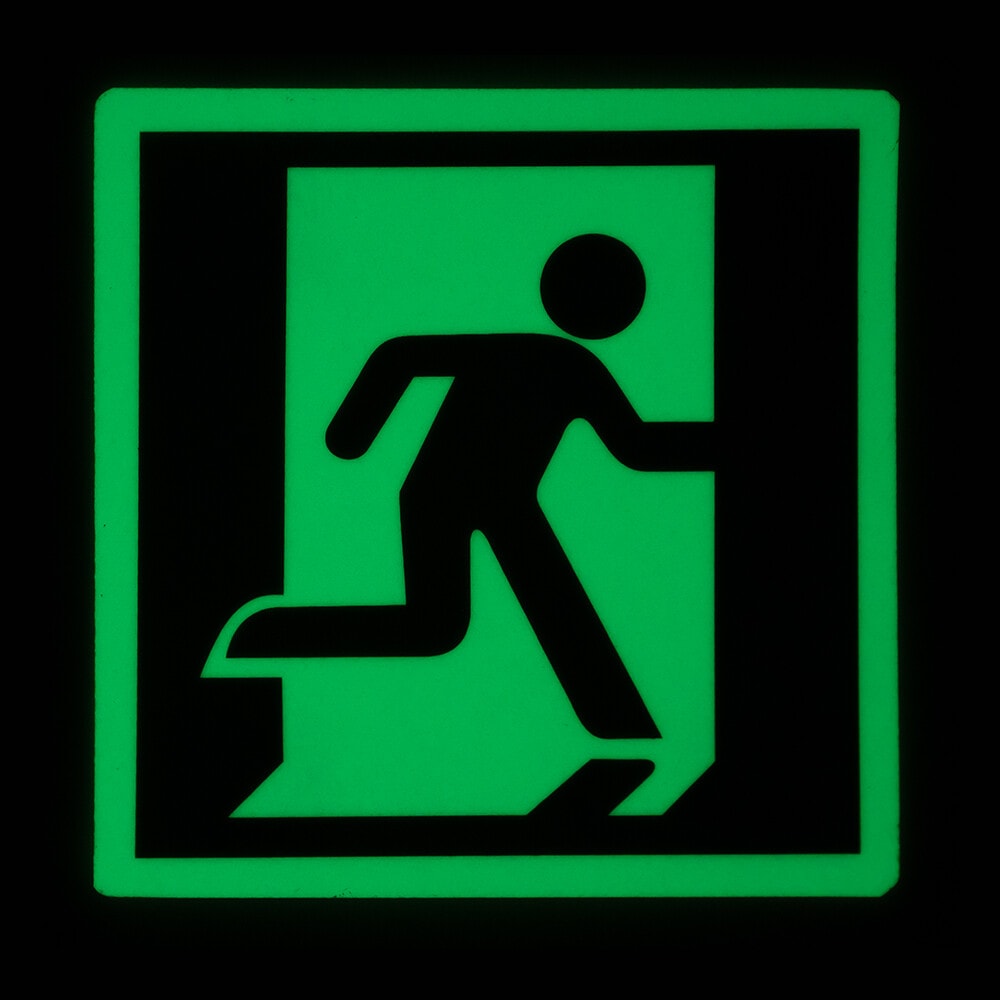

  • Green Running Man on photoluminescent background

  • 5” x 5”

  • Best when paired with Directional Arrow

  • UL 1994 listed

Get A Sample
SKU: DRMR Categories: ,

DOWNLOADS

Product Code: DRMR Standard Options
Short Description Photoluminescent Running Man Right Sign. For marking the egress path, final exit door and vestibule doors on higher floors.
Attachment Hardware Peel and Stick Adhesive Backing Included.
Size 5 Inch x 5 Inch Square
Related Products Running Man Left – Straight Arrow – Diagonal Arrow

INTERNATIONAL BUILDING CODE

The Safe-T-Nose Luminous Egress Path Markings meet the following Building, Fire & Life Safety Codes:

  • 2009, 2012 — IBC/IFC Section 1024 – Luminous Egress Path Markings
  • 2015 & 2018 — Section 1025
  • 2009 — NFPA 101 and 170
  • 2013 — NYC LL 141 Section BC 1024 Luminous Egress Path Markings
  • 2004 — NYC LL 26 Of 2004 Reference Standard 6-1
  • Connecticut State Fire Safety Code Section 1026 Floor Proximity Egress Path Markings
